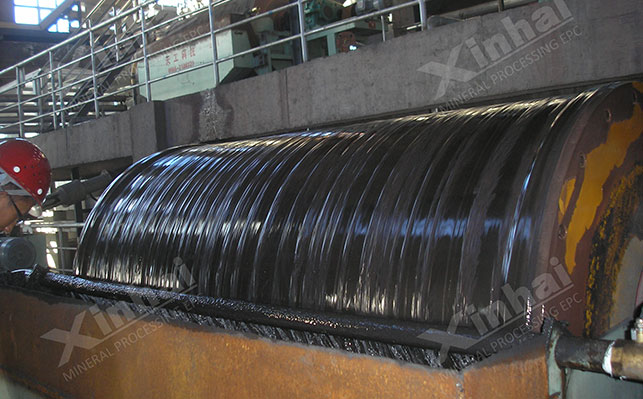

Permanent magnet wet magnetic separators can be divided into three types: cocurrent flow type, counterflow type and semi-counterflow type according to the structure of the box bottom. Xinhai Mining Equipment can customize suitable wet magnetic separators according to the actual conditions of the separation plant.
【Processing Capacity】:42~160t/h
[Feeding particle size]:0~10mm
[Slurry concentration]:20~50%
【Application Environment】:The permanent magnet wet magnetic separator can be used for pre-selection, rough selection, selection, etc., and the selected particle size range is 2~10mm.
15311826613
Click to add WeChatXinhai permanent magnet wet magnetic separator has strong adaptability to production and can withstand large fluctuations in ore feed volume, ore feed particle size and slurry concentration. In addition, each series of magnetic separators can be used together, or one series can be used alone, and good mineral processing indicators can be obtained.
The magnetic system uses neodymium iron boron magnets with high magnetic energy product and high coercivity. The magnetic field strength is high, and the demagnetization rate does not exceed 5% in 8 years;
Field strength The gradient and smooth transition of the large wrapping angle magnetic system increases the length of the sorting belt and the number of magnetic flips to achieve efficient separation of magnetic minerals and non-(weak) magnetic minerals;
The magnetic system is coated with non-magnetic stainless steel , to ensure that the magnet does not fall off;
According to different uses and sorting conditions, each series of magnetic separators have different magnetic system designs and tank structures;
The cylinder adopts non-conductive Made of magnetic stainless steel and coated with wear-resistant rubber, the service life of the cylinder is significantly improved;
It can obtain superior mineral processing indicators of high grade and high recovery rate at the same time.
Downflow permanent magnet drum magnetic separator:The feeding direction of the slurry is the same as that of the barrel. The concentrate is discharged on the other side and the tailings are discharged directly at the bottom. It is generally used for coarse and fine selection of 6~0mm strong magnetic minerals with low recovery rate and high grade, but it is not suitable for processing fine particles. materials.
Counterflow permanent magnet drum magnetic separator:The slurry feeding direction is opposite to the drum rotation, the concentrate is discharged on one side of the feed, and the tailings are discharged on the other side. It is generally used for coarse and sweeping separation of 0.6-0mm strong magnetic ores, with high recovery rate (because the tailings discharge point is far from the ore feed port, sufficient separation) but low grade.
Semi-countercurrent permanent magnet drum:The feeding direction of the slurry is the same as the direction of the drum and half of it is opposite. The difference from the downstream type is that the slurry turns in a circle in the tank. Because the slurry is flushed into a loose state by the dispersing water, inclusions can be prevented, and the movement direction of the slurry is consistent with the direction of the magnetic force, which is conducive to recovery. Because the 0.5-0mm strong magnetic ore is coarse, refined, and swept, the recovery rate and grade are high, and the slurry surface is stable. Therefore, the selection is stable. Therefore, it is widely used.
| Specification Model | Barrel diameter (mm) | Barrel length (mm) | Tube surface field strength (mT) | Cylinder speed (r/min) | Processing capacity (t/h) | Feeding particle size(mm) | Slurry concentration(%) | Motor power(KW) | Total weight(t) |
| CTBy1018 | 1000 | 1800 | 350～550 | 23 | 42～65 | 0～10 | 20～50 | 5.5 | 5.2 |
| CTBy1024 | 1000 | 2400 | 350～550 | 23 | 53～86 | 0～10 | 20～50 | 7.5 | 6.4 |
| CTBy1030 | 1000 | 3000 | 350～550 | 23 | 82～124 | 0～10 | 20～50 | 7.5 | 7.1 |
| CTBY1218 | 1200 | 1800 | 350～550 | 20 | 58～97 | 0～10 | 20～50 | 7.5 | 6.7 |
| CTBY1224 | 1200 | 2400 | 350～550 | 20 | 71～120 | 0～10 | 20～50 | 11 | 7.2 |
| CTBY1230 | 1200 | 3000 | 350～550 | 20 | 103～158 | 0～10 | 20～50 | 11 | 8.9 |
| CTBC1018 | 1000 | 1800 | 300～500 | 23 | 36～54 | 0～4 | 20～50 | 5.5 | 5.2 |
| CTBC1024 | 1000 | 2400 | 300～500 | 23 | 44～75 | 0～4 | 20～50 | 7.5 | 6.4 |
| CTBC1030 | 1000 | 3000 | 300～500 | 23 | 66～103 | 0～4 | 20～50 | 7.5 | 7.1 |
| CTBC1218 | 1200 | 1800 | 300～500 | 20 | 47～82 | 0～4 | 20～50 | 7.5 | 6.7 |
| CTBC1224 | 1200 | 2400 | 300～500 | 20 | 62～105 | 0～4 | 20～50 | 11 | 7.2 |
| CTBC1230 | 1200 | 2400 | 300～500 | 20 | 62～105 | 0～4 | 20～50 | 11 | 7.2 |
| CTBj1018 | 1000 | 1800 | 200～300 | 23 | 24～36 | 0～2 | 20～50 | 5.5 | 5.2 |
| CTBj1024 | 1000 | 2400 | 200～300 | 23 | 33～56 | 0～2 | 20～50 | 7.5 | 6.4 |
| CTBj1030 | 1000 | 3000 | 200～300 | 23 | 46～72 | 0～2 | 20～50 | 7.5 | 7.1 |
| CTBJ1218 | 1200 | 1800 | 200～300 | 20 | 35～45 | 0～2 | 20～50 | 7.5 | 6.7 |
| CTBJ1224 | 1200 | 2400 | 200～300 | 20 | 43～77 | 0～2 | 20～50 | 11 | 7.2 |
| CTBJ1230 | 1200 | 3000 | 200～300 | 20 | 54～86 | 0～2 | 20～50 | 11 | 8.9 |
| CTBN1018 | 1000 | 1800 | 260～450 | 23 | 35～68 | 0～4 | 20～50 | 5.5 | 5.2 |
| CTBN1024 | 1000 | 2400 | 260～450 | 23 | 46～86 | 0～4 | 20～50 | 7.5 | 6.4 |
| CTBN1030 | 1000 | 3000 | 260～450 | 23 | 67～126 | 0～4 | 20～50 | 7.5 | 7.1 |
| CTBN1218 | 1200 | 1800 | 260～450 | 20 | 52～90 | 0～4 | 20～50 | 7.5 | 6.7 |
| CTBN1224 | 1200 | 2400 | 260～450 | 20 | 77～126 | 0～4 | 20～50 | 11 | 7.2 |
| CTBN1230 | 1200 | 3000 | 260～450 | 20 | 90～160 | 0～4 | 20～50 | 11 | 8.9 |
