The agitator scrubbing machine has a compact structure, a small footprint, high resistance to material impact and abrasion, and a low failure rate.
[Processing Capacity]:1.5-4.4m3
[Application Environment]:It is suitable for various loose muddy granular mineralization or materials with a mineral particle size of 0-6mm, for particle scrubbing and purification and muddy material dispersion, dissociation, and separation to remove glue. Solvents and soil attached to the surface of minerals or materials.
15311826613
Click to add WeChatXinhai agitator scrubbing machines are available in GJC and Y series. The impeller and blades in the tank are lined with Xinhai wear-resistant rubber and have a long service life.
The main shaft rotates at high speed, driving the impeller to scrub the material vigorously, with high scrubbing effect;
The shape of the tank is hexagonal, which is easy to change the direction of the slurry movement, and can effectively reduce the vibration of the circular cylinder. The vortex effect ensures sufficient stirring intensity.

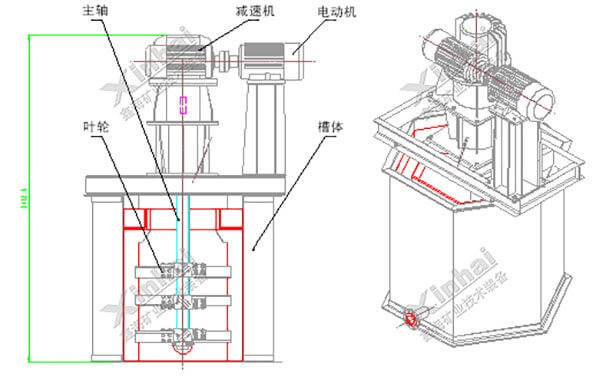

The agitator scrubber is mainly composed of a motor, reducer, main shaft, upper, middle and lower impellers, and a tank.
The electric motor drives the three-layer specially designed rubber impeller on the main shaft to rotate through the hard-tooth surface reducer to vigorously scrub the material.
In a quartz sand beneficiation plant project in Shanxi, Xinhai Mining used a high-efficiency stirring scrubber to remove the film iron, bonding and muddy impurities on the surface of the quartz sand, and further rubbed the unmonomerized mineral aggregates, and then achieved the effect of further purifying the quartz sand through classification operations. The scrubbing effect is high and the equipment has a long service life. The customer is very satisfied with it.
