Efficient Deep Cone Thickener

Product introduction

The modified deep cone concentrator produced by Xinhai Mining adopts a large-angle bottom cone design, with high underflow concentration, small footprint, high degree of automation, and good energy saving and consumption reduction effects.

Performance Features

Since the bottom cloth of this type of concentrator is deep cone-shaped and the tank body is slender, adding flocculant during the concentration process can effectively improve the settling operation of the material;

High efficiency Due to the slender tank body of the deep cone concentrator, flocculant is added during the concentration process, which accelerates the concentration process of material settling and overflow water clarification;

The new design can realize intelligent operation and improve the underflow concentration. and the quality of overflow water have been greatly improved.

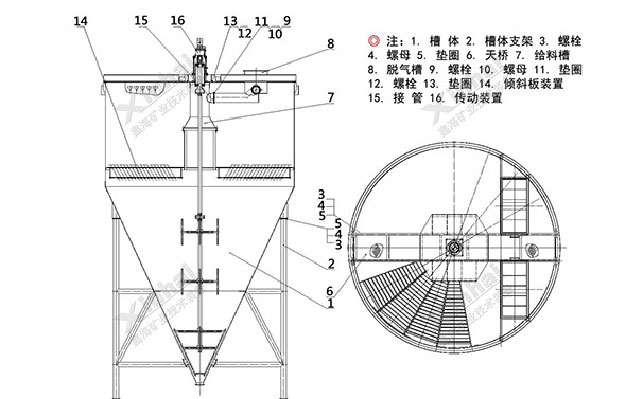

Product structure

How it works

The solid particles suspended in the slurry in the concentration tank settle under the action of gravity, and the upper part becomes clarified water, allowing solid and liquid to be separated. The sludge deposited at the bottom of the concentration tank is continuously scraped by a rake scraper and discharged from the central ore outlet at the bottom of the tank, while the clarified water overflows from the upper edge of the concentration tank.

Technical parameters
