The Press Filter produced by Xinhai is a kind of intermittent solid-liquid separation equipment, including box filter press, plate and frame filter press and belt filter press.
[Processing Capacity]:12~80t/h
[Filter Area]: 20~1180m2
[Application Environment]:The chamber Press Filter is suitable for concentrate filtration and tailings filtration and dry discharge operations. The product particle size can reach -500 mesh; the plate and frame Press Filter is suitable for gold, silver, copper, iron, zinc ore, rare earth and other powdered ores. Dewatering and tailings dam treatment.
15311826613
Click to add WeChatXinhai filter press is designed and manufactured with mechanical and electrical integration, with reasonable structure, simple and convenient operation, high temperature and high pressure resistance, durability, programmable control and automatic operation.
The equipment has stable performance, high degree of automation, safety, reliability, and easy operation, and can realize backwash operations;
It can form different filtering areas and volumes according to the number of filter plates;
< p>The feeding adopts two-stage intermediate feeding, which has fast filtration speed and high efficiency;
It can realize automatic pressing, maintaining pressure, supplementing pressure, loosening, pulling plate and other processes.

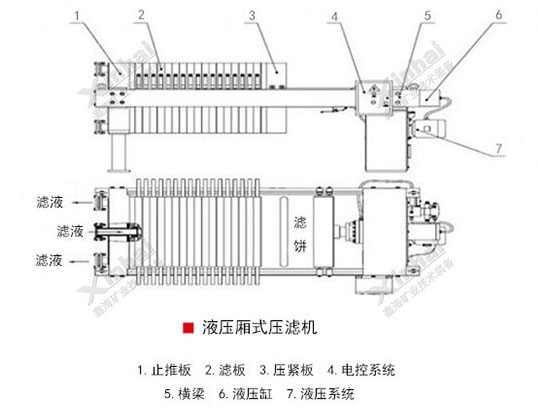

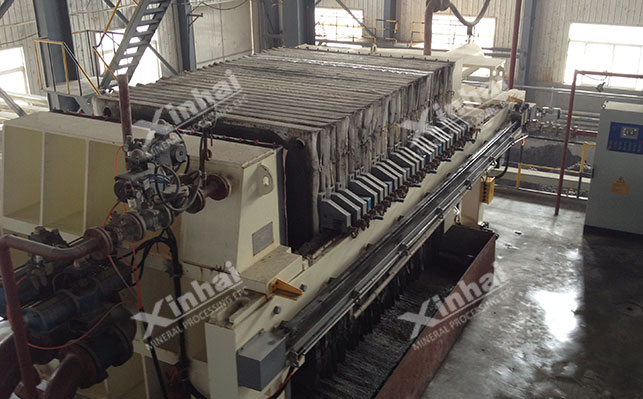

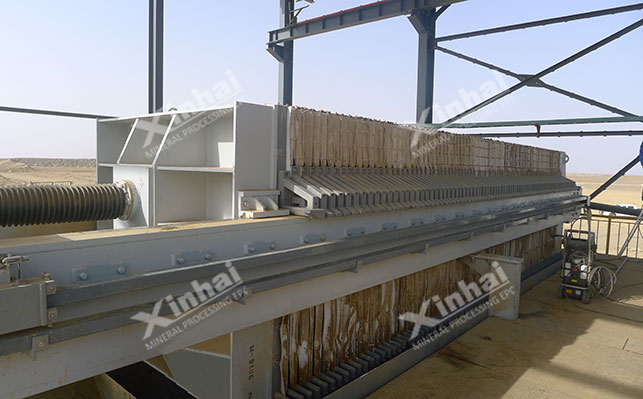

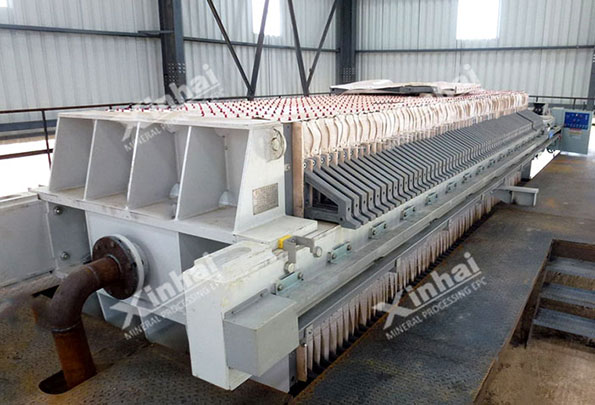

The filter press is mainly composed of a thrust plate, a filter plate, a compression plate, an electronic control system, a beam, a hydraulic cylinder and a hydraulic system. Both sides of the filter plate are covered with filter cloth, and dehydration can be completed through automatic control. Operation.
The filter press is composed of a thrust plate and a filter frame (or box plate) arranged to form a filter chamber. Under the pressure of the feed pump, the slurry is sent into the filter chamber, and the solids are passed through the filter medium. and liquid separation.
| Model | 过滤面积 (M2) | 滤室 数量 | 滤板规格 (MM) | 滤饼厚度 (MM) | 滤室容积 (M3) | 过滤压力 (MPA) | 外形尺寸 (MM) | Motor Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| XM/AZ 20/800U | 20 | 20 | 800×800×60 | 30 | 0.287 | 0.5~1.6 | 3500×1350×1160 | 2.2 | 2750 |
| XM/AZ 30/800U | 30 | 30 | 800×800×60 | 30 | 0.453 | 0.5~1.6 | 4110×1350×1160 | 2.2 | 3130 |
| XM/AZ 40/800U | 40 | 40 | 800×800×60 | 30 | 0.605 | 0.5~1.6 | 4720×1350×1160 | 2.2 | 3420 |
| XM/AZ 50/800U | 50 | 50 | 800×800×60 | 30 | 0.756 | 0.5~1.6 | 5330×1350×1160 | 2.2 | 3700 |
| XM/AZ 60/800U | 60 | 6 | 800×800×60 | 30 | 0.907 | 0.5~1.6 | 5940×1350×1160 | 2.2 | 4110 |
| XM/AZ 70/800U | 70 | 70 | 800×800×60 | 30 | 1.059 | 0.5~1.6 | 6550×1350×1160 | 2.2 | 4400 |
| XM/AZ 80/800U | 80 | 80 | 800×800×60 | 30 | 1.21 | 0.5~1.6 | 7160×1350×1160 | 2.2 | 4740 |
| XM/AZ 40/900U | 40 | 32 | 900×900×60 | 30 | 0.59 | 0.5~1.6 | 4230×1480×1280 | 2.2 | 4500 |
| XM/AZ 50/900U | 50 | 40 | 900×900×60 | 30 | 0.75 | 0.5~1.6 | 4720×1480×1280 | 2.2 | 4800 |
| XM/AZ 60/900U | 60 | 47 | 900×900×60 | 30 | 0.88 | 0.5~1.6 | 5150×1480×1280 | 2.2 | 5100 |
| XM/AZ 70/900U | 70 | 6 | 900×900×60 | 30 | 1.19 | 0.5~1.6 | 6120×1480×1280 | 2.2 | 5700 |
| XM/AZ 60/1000U | 60 | 38 | 1000×1000×60 | 30 | 0.9 | 0.5~1.6 | 5450×1560×1360 | 2.2 | 7080 |
| XM/AZ 80/1000U | 80 | 50 | 1000×1000×60 | 30 | 1.19 | 0.5~1.6 | 6180×1560×1360 | 2.2 | 7830 |
| XM/AZ 100/1000U | 100 | 62 | 1000×1000×60 | 30 | 1.48 | 0.5~1.6 | 6910×1560×1360 | 2.2 | 8680 |
| XM/AZ 120/1000U | 120 | 75 | 1000×1000×60 | 30 | 1.8 | 0.5~1.6 | 7710×1560×1360 | 2.2 | 9250 |
| XM/AZ 125/1250U | 120 | 46 | 1250×1250×65 | 32 | 1.9 | 0.5~1.6 | 6500×1770×1620 | 4 | 10900 |
| XM/AZ 150/1250U | 150 | 58 | 1250×1250×65 | 32 | 2.41 | 0.5~1.6 | 7290×1770×1620 | 4 | 11800 |
| XM/AZ 180/1250U | 180 | 69 | 1250×1250×65 | 32 | 2.88 | 0.5~1.6 | 8020×1770×1620 | 4 | 12700 |
| XM/AZ 200/1250U | 200 | 77 | 1250×1250×65 | 32 | 3.22 | 0.5~1.6 | 8550×1770×1620 | 4 | 13300 |
| XM/AZ 220/1250U | 220 | 84 | 1250×1250×65 | 32 | 3.51 | 0.5~1.6 | 9010×1770×1620 | 4 | 13900 |
| XM/AZ 250/1250U | 250 | 95 | 1250×1250×65 | 32 | 3.98 | 0.5~1.6 | 9740×1770×1620 | 4 | 14800 |
| XM/AZ 300/1500U | 300 | 77 | 1500×1500×70 | 32 | 4.76 | 0.5~1.6 | 10040×2400×1800 | 5.5 | 26500 |
| XM/AZ 320/1500U | 320 | 83 | 1500×1500×70 | 32 | 5.14 | 0.5~1.6 | 10460×2400×1800 | 5.5 | 27190 |
| XM/AZ 340/1500U | 340 | 88 | 1500×1500×70 | 32 | 5.45 | 0.5~1.6 | 10820×2400×1800 | 5.5 | 27880 |
| XM/AZ 350/1500U | 350 | 90 | 1500×1500×70 | 32 | 5.58 | 0.5~1.6 | 10960×2400×1800 | 5.5 | 28230 |
| XM/AZ 380/1500U | 380 | 98 | 1500×1500×70 | 32 | 6.08 | 0.5~1.6 | 11530×2400×1800 | 5.5 | 29260 |
| XM/AZ 400/1500U | 400 | 103 | 1500×1500×70 | 32 | 6.39 | 0.5~1.6 | 11880×2400×1800 | 5.5 | 29950 |
| XM/AZ 450/1500U | 450 | 116 | 1500×1500×70 | 32 | 7.21 | 0.5~1.6 | 12810×2400×1800 | 5.5 | 31670 |
| XM/AZ 500/1500U | 500 | 128 | 1500×1500×70 | 32 | 7.96 | 0.5~1.6 | 13660×2400×1800 | 5.5 | 33390 |
| XM/AZ 560/2000U | 560 | 80 | 2000×2000×83 | 40 | 11.16 | 0.5~1.6 | 10600×2900×2450 | 11 | 56500 |
| XM/AZ 600/2000U | 600 | 86 | 2000×2000×83 | 40 | 12.01 | 0.5~1.6 | 12110×2900×2450 | 11 | 58000 |
| XM/AZ 630/2000U | 630 | 90 | 2000×2000×83 | 40 | 12.58 | 0.5~1.6 | 12440×2900×2450 | 11 | 59000 |
| XM/AZ 670/2000U | 670 | 96 | 2000×2000×83 | 40 | 13.43 | 0.5~1.6 | 12950×2900×2450 | 11 | 60500 |
| XM/AZ 710/2000U | 710 | 101 | 2000×2000×83 | 40 | 14.13 | 0.5~1.6 | 13370×2900×2450 | 11 | 62000 |
| XM/AZ 750/2000U | 750 | 107 | 2000×2000×83 | 40 | 14.98 | 0.5~1.6 | 13870×2900×2450 | 11 | 63300 |
| XM/AZ 800/2000U | 800 | 114 | 2000×2000×83 | 40 | 15.97 | 0.5~1.6 | 14460×2900×2450 | 11 | 65200 |
| XM/AZ 850/2000U | 850 | 121 | 2000×2000×83 | 40 | 16.96 | 0.5~1.6 | 15050×2900×2450 | 11 | 67000 |
| XM/AZ 900/2000U | 900 | 128 | 2000×2000×83 | 40 | 17.95 | 0.5~1.6 | 15640×2900×2450 | 11 | 69000 |
| XM/AZ 950/2000U | 950 | 135 | 2000×2000×83 | 40 | 18.94 | 0.5~1.6 | 16220×2900×2450 | 11 | 70600 |
| XM/AZ 1000/2000U | 1000 | 142 | 2000×2000×83 | 40 | 19.92 | 0.5~1.6 | 16810×2900×2450 | 11 | 72300 |
| XM/AZ 1060/2000U | 1060 | 151 | 2000×2000×83 | 40 | 21.2 | 0.5~1.6 | 17570×2900×2450 | 11 | 74500 |
| XM/AZ 1120/2000U | 1120 | 159 | 2000×2000×83 | 40 | 22.33 | 0.5~1.6 | 18240×2900×2450 | 11 | 76800 |
| XM/AZ 1180/2000U | 1180 | 168 | 2000×2000×83 | 40 | 23.61 | 0.5~1.6 | 19000×2900×2450 | 11 | 79000 |
