High efficiency concentrator

Product introduction

The high-efficiency modified concentrator produced by Xinhai changes the traditional internal overflow weir to an external overflow weir. It not only increases the settling area and reduces the blocking phenomenon, but also effectively increases its processing capacity and reduces the The turbidity of the overflow and the discharge ore concentration are high.

Performance Features

A degassing tank has been added inside the Xinhai high-efficiency modified concentrator, which can effectively eliminate particles attached to the bubbles;

The position of the ore feeding pipe has also been changed, and it is designed to be above the liquid level down, which can effectively prevent gas from being introduced into the ore;

The ore feeding sleeve has also been moved down, and is equipped with a material receiving plate, which makes the fed slurry more uniform, ensures smooth landing, and reduces the risk of turning over. Flower phenomenon;

The additional internal overflow weir device in the settling tank can enable the minerals to form according to the prescribed process, prevent the "short circuit" phenomenon, and greatly increase the sedimentation area;

The additional internal overflow weir device The overflow weir allows materials to flow as specified, prevents "short circuit" and greatly increases the sedimentation area;

The overflow weir of Xinhai high-efficiency concentrator is changed to a zigzag shape to improve the overflow caused by The local suction phenomenon caused by the uneven flow weir;

Change the horizontal feeding of the traditional concentrator to the inclined feeding, which fundamentally eliminates the problem of feeding blockage;

It is equipped with a buffer The flow device slows down the rising speed of material water flow, making the overflow water more uniform and with lower turbidity.

The unit processing capacity is 4 to 9 times that of conventional concentrators. Calculated based on unit processing capacity, it saves 30% of energy consumption than traditional concentrators;

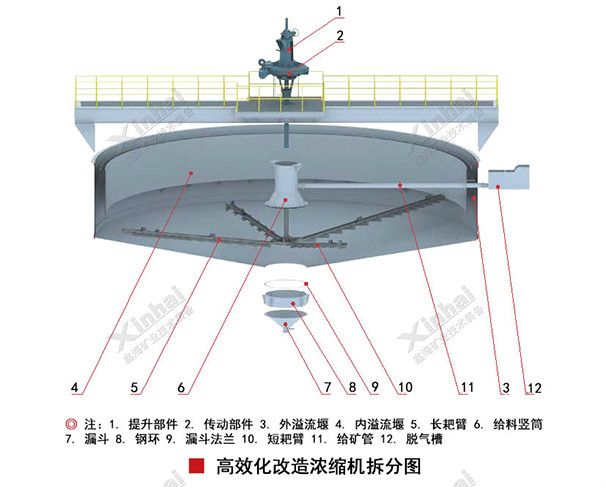

Product structure

How it works

The high-efficiency transformation concentrator mainly consists of two parts: a circular concentration tank and a rake scraper. The solid particles suspended in the slurry in the concentration tank settle under the action of gravity, and the upper part becomes clarified water, making the solid-liquid The sludge deposited at the bottom of the concentration tank is continuously scraped by a rake scraper to the center of the bottom of the tank and discharged, while the clarified water overflows from the upper edge of the concentration tank.

Technical parameters
