The Pakistani copper ore flotation project undertaken by Xinhai Mining is a service project for the entire mining industry chain. The project includes mineral processing testing, mine processing plant design, mineral processing process design, mineral processing equipment configuration, production, procurement, mineral processing equipment packaging and delivery, and mineral processing Factory equipment installation, training and other aspects.
1500t/d
XCF type/KYF type flotation machine, BF type flotation machine, wet grid ball mill, high efficiency modified concentrator
Two and a half closed-circuit crushing stages - one closed-circuit grinding stage - one rough separation, two sweeps, two fine flotation stages - two stages of mechanical dehydration process.
15311826613
Click to add WeChatThe ore composition of the Pakistan copper mine project is simple, and the metallic minerals are mainly chalcopyrite and pyrite. Non-metallic minerals are mainly quartz, chlorite, etc. It can be seen from the multi-element analysis results that the element that can be recycled in the ore is copper.
In the crushing and screening stage of the copper ore beneficiation, through coarse crushing, half-stage crushing, fine crushing and screening operations, the final crushed ore product particle size is -12mm; grinding The classification operation involves grinding, screening, and classification to finally grind the copper minerals to a wet grid ball mill, with -200 mesh accounting for 68.0%;
Lime is used as the regulator in the flotation stage, and Z200 is For the collector, the raw ore is ground to -200 mesh, accounting for 68.4%. The XCF/KYF flotation machine is used for roughing and two sweeping operations, and the BF flotation machine is used for the two selection operations. In the end, the flotation copper concentrate grade was 20.00%, and the copper recovery rate reached 90.00%.
In the flotation separation stage, lime is used as the regulator and Z200 is the collector. The raw ore is ground to -200 mesh, accounting for 68.4%. Concentrate can be obtained with a yield of 3.45%, a copper grade of 20.78%, and a copper recovery rate of 90.05%.
Pakistan copper mine project flotation machine installation site

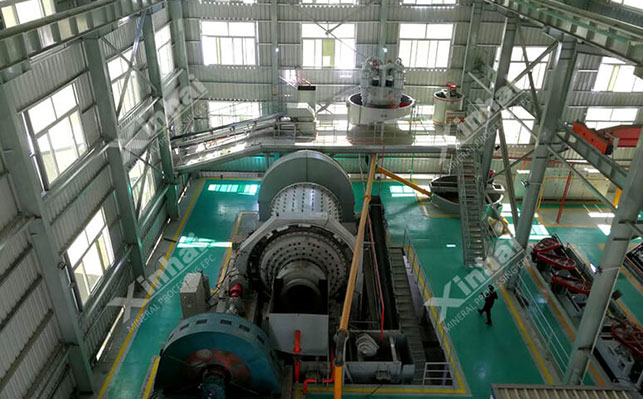

Pakistan Copper Mine Project Processing Plant Overview - Into Production
