XCF Air Inflation Flotation Cell

Product introduction

The XCF type inflatable flotation machine is a mechanical agitation type, and the inflatable self-priming slurry means that air needs to be sent in from the outside by a blower, and the impeller is used to absorb the slurry and stir the slurry and gas. Xcf flotation machine can be combined with kyf flotation machine to form a combined unit. Equipped with foam pump.

Performance Features

The U-shaped tank design shortens the flotation distance and facilitates the return of coarse and heavy mineral particles to the impeller area for recirculation, avoiding the accumulation of ore and reducing the short circuit of the slurry;

The U-shaped tank is in the shape of a funnel. This structure occupies a small area and helps the foam layer flow smoothly;

The blades on the impeller of the The backflow of the air in the main tank prevents the air in the main tank from returning to the central cylinder and the connecting pipe;

The lower blade of the xcf flotation machine impeller is a high-specific-revolution backward-inclined centrifugal blade with low dynamic pressure head and large flow rate. Circulating slurry and dispersing air;

The slurry level of the flotation machine has automatic control, electric control and manual control devices, which can be selected according to customer needs or requirements;

Small flotation machine It is a handwheel lifting gate. The large flotation machine is equipped with an electric lifting gate motor, and can cooperate with the liquid level control system to control the liquid level and realize the automation of the dressing plant.

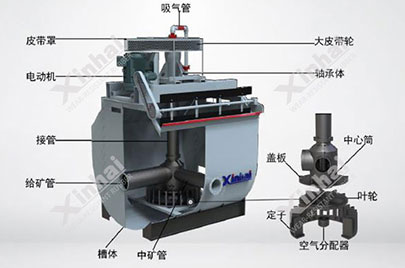

Product structure

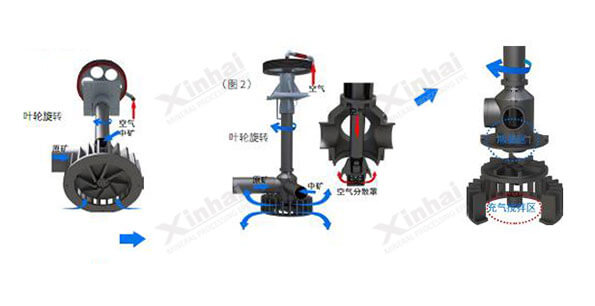

How it works

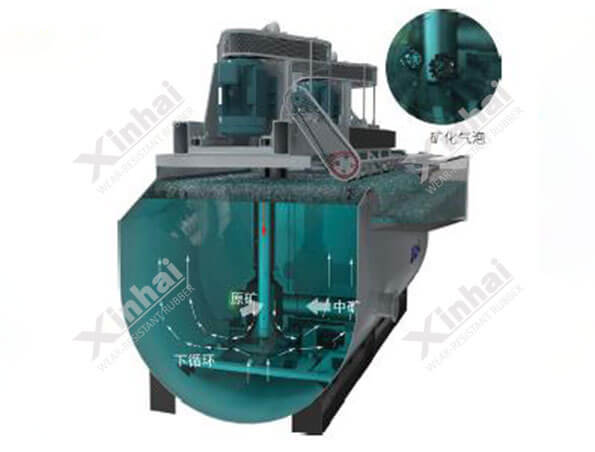

The working principle of the xcf flotation machine is that the slurry in the tank is driven by the impeller to rotate. It is sucked into the gap between the blades and the impeller through the bottom of the tank from the lower end of the impeller. The air pressure required by the flotation machine is sent to the flotation machine through an external blower. After entering the hollow spindle, it is blown into the gap between the impeller blades through the internal air disperser. In this area, the slurry and air can be fully stirred and mixed. The mixed slurry is discharged upward to the upper half of the impeller. After the stator is stabilized and oriented, it is dispersed throughout the tank of the flotation machine. Since the general inflatable mechanical agitation flotation machine presses in low-pressure air, it reduces the negative pressure in the center area of the impeller, making it difficult to absorb slurry.

Product Illustration

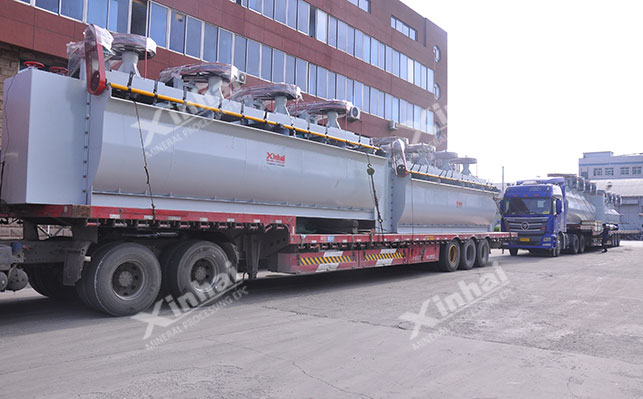

Xinhai XCF flotation machine packaging and delivery site

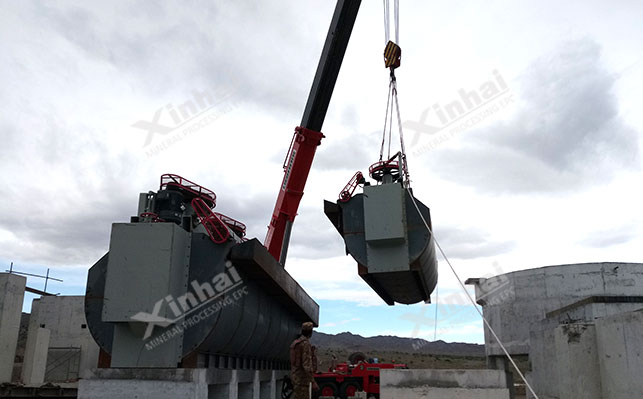

On-site installation of XCF type flotation machine project

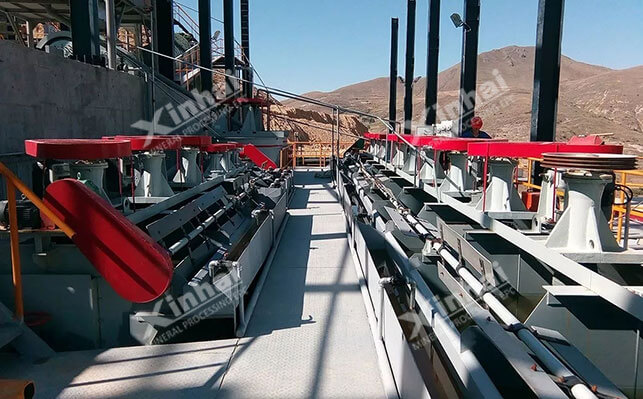

XCF type flotation machine application in a gold mine concentrator

Technical parameters
