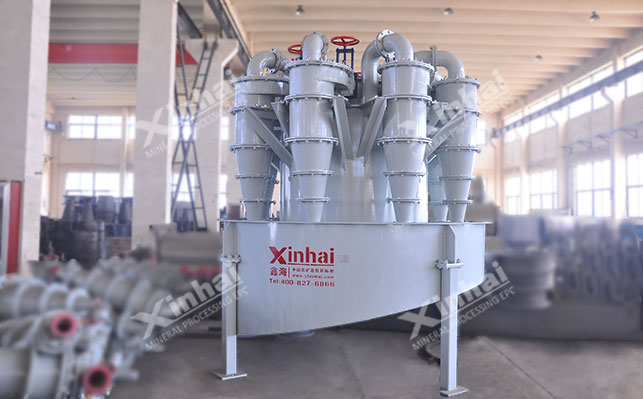

Hydrocyclone (set)

Product introduction

The feed inlet of the cyclone and cyclone group adopts involute feeding method, which can effectively increase the centrifugal force of the material, improve the classification effect of minerals, and at the same time, reduce the wear at the feeding place;

Involute feeding can reduce the chaos caused by the divergence of materials after entering the cyclone, and ensure the smooth operation of the slurry in the body;

The length ratio of the cylindrical and conical sections of the cyclone and The insertion depth of the overflow pipe is reasonable, and the classification efficiency is higher;

The cyclone and group are selected by computer to make the cyclone operate more efficiently;

The cyclone combination has strong performance , can be selected and matched according to specific working conditions;

Performance Features

1. There is a fish tail device at the sand sinking mouth of the hydrocyclone. When the ore feed volume, feed concentration, and feed pressure fluctuate within a certain range, the XCⅢ hydrocyclone can discharge the underflow. Concentration and overflow fineness remain constant.

2. There is a siphon device on the top of the cyclone overflow box. By adjusting the siphon, a higher underflow concentration and a lower overflow concentration can be obtained. The overflow can be adjusted until almost clean water is discharged. Underflow concentration is as high as 85%.

3. The memory of the cyclone is made of highly wear-resistant rubber lining. Its wear resistance, strength and elasticity are 3-4 times that of ordinary rubber, effectively extending the use of the cyclone. life.

4. The cyclone group is equipped with Xinhai gapless gate valve. Each cyclone is installed at the ore feeding port to control the feeding situation and ensure the stability of the ore feeding.

How it works

The principle of hydrocyclone is centrifugal sedimentation. When the two-phase (or three-phase) mixed liquid to be separated enters the cyclone from the cyclone feed port at a certain pressure, a strong three-dimensional elliptical strong rotation will occur. Shear turbulent motion. Due to the different densities of the particles, they experience different centrifugal force, centripetal buoyancy, fluid drag, etc. Due to the centrifugal sedimentation, most of the coarse particles (or heavy phase) are discharged through the bottom flow port of the cyclone, while most of the fine particles ( or light phase) is discharged from the overflow pipe to achieve the purpose of separation and classification.
