Crusher

Product introduction

Xinhai crusher equipment has a large crushing ratio and long service life. The equipment is customized according to mineral properties, processing capacity, etc., and is more cost-effective.

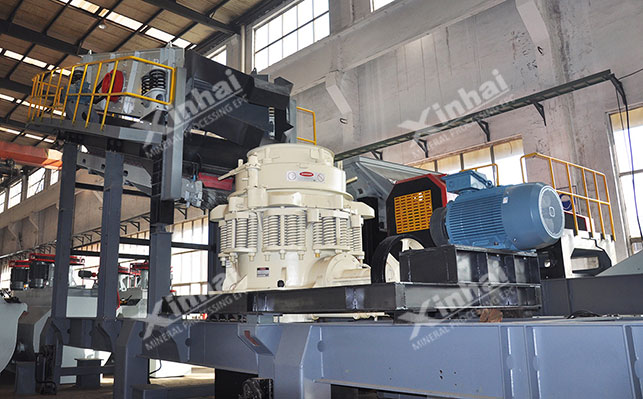

Compared with ordinary crushing and screening operations, the mobile crushing station is more convenient, mobile, and occupies a small area. The site can be directly selected and placed on site before being put into production.

The crushing and screening system consists of eliminating the belt transportation process, which not only improves efficiency but also reduces equipment investment.

Performance Features

The jaw crusher adopts a deep cavity design, which has a large crushing ratio and high efficiency;

The arc-shaped jaw plate design of the crusher increases the size of the jaw plate The effective length is larger and the processing capacity is larger.

The hammer head of the hammer crusher is cast using a new process, which is more wear-resistant and impact-resistant;

The cone crusher adopts dry oil or water sealing methods. It prevents dust and impurities from entering the machine body, thereby ensuring the cleanliness of the lubricating oil, extending the service life of the sliding bearings and thrust ball bearings, and making the machine run reliably.

Product structure

How it works

Jaw crusher: It uses the periodic movement of the movable jaw to swing around the fixed jaw, so that the material located between the two jaws is squeezed to produce a crushing effect.

Hammer crusher: It relies on impact energy to complete the crushing operation. When working, the motor drives the rotor to rotate at high speed, feeding the material evenly into the crusher cavity, and rotating the hammer at high speed. The head impacts, shears, and tears minerals causing the ore to break.

Cone crusher: Using a motor to drive, the gears are linked to each other, so that the transmission shaft and transmission gear drive the eccentric sleeve to rotate, and the moving cone rotates under the action of the eccentric sleeve. Due to the pendulum motion, the movable cone and the fixed cone sometimes approach and sometimes deviate, thereby continuously squeezing or impacting the material and causing it to break.

Technical parameters
