Mechanical agitator flotation machine is a type of flotation equipment. The main feature of this type of flotation machine is that it relies on a mechanical agitator to complete the flotation operation. What is a blender? In fact, it is the rotor stator. When the motor drives the gear, it forces the impeller, stator and rotor of the flotation machine to move. The centrifugal force and negative pressure generated in the process realize slurry suction and air suction (or inflation) operations. When fully mixed with the agent After the reaction occurs, the water-absorbing or hydrophobic minerals adhere to the bubbles and float up, completing the separation of minerals and gangue and achieving flotation.

At present, the models of mechanical agitation flotation machines includeSF type, JJF type, BF type, GF type, XJK typeThere are several types. Which model is more suitable to choose in the mineral processing plant. The following editor will introduce to you the characteristics and application environments of these flotation machine models to help you choose.

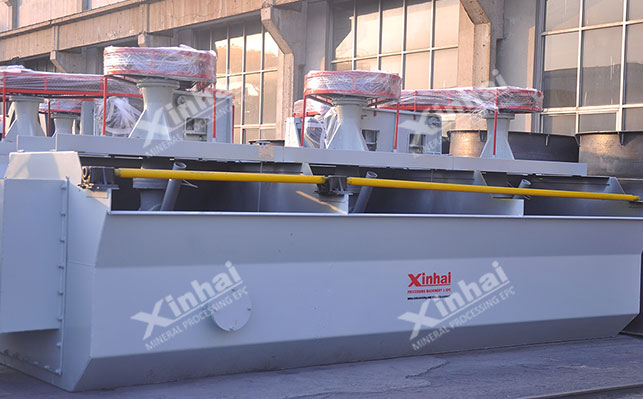

1. SF mechanical agitation flotation machine

This flotation machine can suck air or slurry by itself. Each tank has the functions of air suction, slurry suction and The triple function of flotation automatically forms a flotation circuit without the need for air supply from a blower, so there is no need to lift and pump the slurry, thus reducing the investment in auxiliary equipment.

The impeller adopts a backward-inclined double-sided blade design, which can realize two-way circulation of the slurry in the flotation tank, resulting in small dead spots in the tank, fast foam movement, and low energy consumption.

In addition, SF flotation machine can be used with JJF The flotation machine forms a combined unit, sf is used as the suction tank, and jjf is used as the direct flow tank.

SF mechanical agitation flotation machines are mostly used in medium and large metal and non-metal mineral processing plants for roughing and sweeping operations.

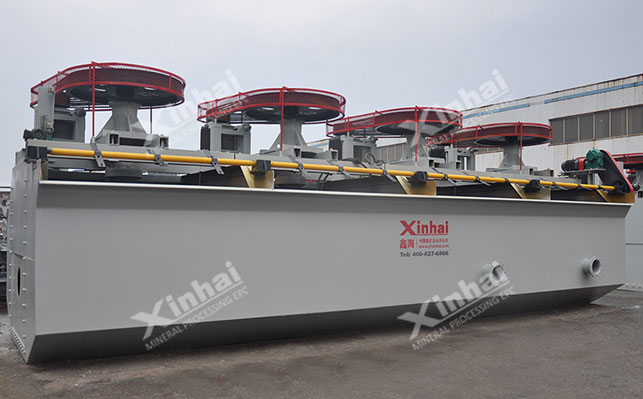

2. JJF mechanical agitation flotation machine

This flotation machine is not like the sf type, which can absorb slurry and air. It can only absorb air and cannot complete the slurry suction alone. Therefore, in the mineral processing plant, when the middle ore returns, a lift pump needs to be configured to complete the operation.

JJF mechanical agitation flotation machine is suitable for sorting metallic ores and non-metals with a wide range of aeration requirements For minerals (such as copper, molybdenum, etc.), the application environment is the same as that of the SF flotation machine, and it is mostly used for roughing and sweeping operations.

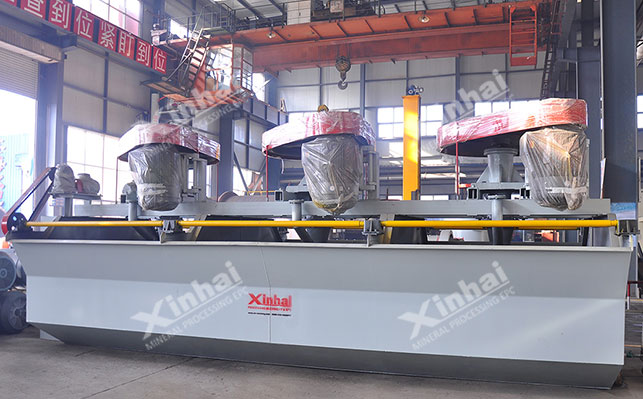

3. BF mechanical agitation flotation machine

This flotation machine is divided into type I and type II. Among them, type I is improved based on the SF flotation machine, and type II is improved based on the JJF flotation machine. When I and II are used together, self-priming and self-priming pulp can be achieved without the need for ladder configuration in the flotation operation. function, eliminating the investment in auxiliary equipment.

In addition, the BF mechanical agitation flotation machine is equipped with automatic slurry level control, electric control and manual control devices, which can be selected according to customer needs or requirements.

In mineral processing plants, BF flotation machine is mostly used for coarse-grained flotation operations. The particle size range of its processed materials is 0.074mm accounts for 45%-98%, with high sorting efficiency and strong adaptability.

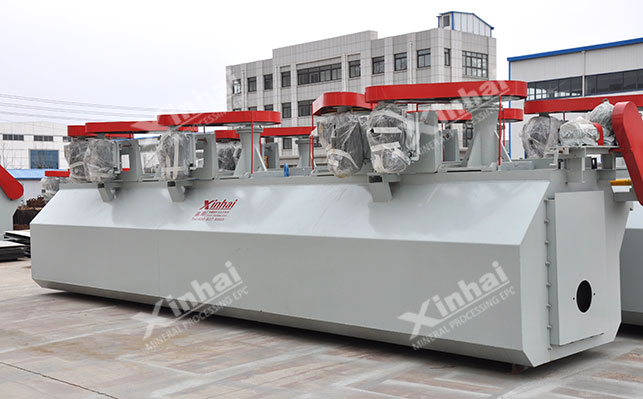

4. GF mechanical agitation flotation machine

This flotation machine can be self-aspirated It can also self-prime slurry, and the aeration volume and suction volume are both high, resulting in high air dispersion, high sorting efficiency, and good slurry circulation.

In the mineral processing plant, the GF mechanical agitation flotation machine has good flotation efficiency for minerals with high slurry concentration, heavy mineral specific gravity, coarse and fine particle sizes.

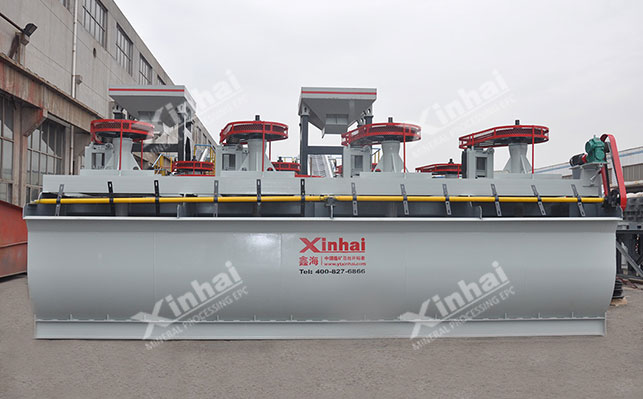

5. XJK mechanical agitation flotation machine

This flotation machine can also be called A-type flotation machine or XJ-type flotation machine. The flotation machine upgraded by xj relies on impeller stirring to produce local vacuum aeration. It has a large processing capacity and high flotation efficiency.

In addition, the flotation machine is lined with wear-resistant rubber plates produced by Xinhai, which greatly extends its service life.

In mineral processing plants, it is mostly used for flotation of minerals with higher density or coarser particle size for roughing and selection operations.

The above are several common models and types of mechanical agitation flotation machines. When selecting equipment, you must not only select the model according to the conditions of the dressing plant, but also based on the processing capacity, ore properties and particle size, etc. Choose according to the conditions to choose the flotation machine that suits you.
