Quartz sand ball mill equipment is one of the indispensable equipment in quartz sand mineral processing operations. Through the ball mill grinding operation, the quartz sand is ground into powder to improve the purification purpose of quartz sand (silica sand).

Xinhai Mining produces many types of quartz sand ball mills with complete models, mainly including Grid type ball mill , Overflow Ball Mill, Long Tube Ball Mill and < a href="/pro/bangmoji" target="_self">Rod mill, etc., the specific models can be customized according to the actual situation of mineral processing. In addition, we can also provide Mining full industry chain services (EPC+M+O), that is, mining services that integrate mineral processing design and research, complete equipment manufacturing and procurement, commissioning and delivery, mine management and mine operation services.

Currently, Xinhai ball mills have been used in many quartz sand concentrators. Let’s take a look at some quartz sand ball mill project cases.

1. Shanxi quartz sand ball mill project

The Shanxi quartz sand ball mill project is also a mining industry-wide service project undertaken by Xinhai Mining. Xinhai has appointed relevant technical personnel for this project On-site sampling was conducted, and then mineral processing test analysis was conducted. Based on the analysis results, the Raw ore grinding-magnetic separation-flotation-scrubbing process was customized. In the end, the process achieved a yield of 84.03%, meeting expectations. , the customer was satisfied with the result.

2. Anhui quartz sand ball mill project

The total processing capacity of this project is 1000t/d, and it is a mining project undertaken by Xinhai Mining Full industry chain service projects. Before the mineral processing test, the customer sent 50 tons of mineral samples, and Xinhai conducted mineral processing test analysis for it. In addition, Xinhai Mining Design Institute sent technical personnel to conduct an on-site inspection of the mineral processing plant, and combined with the mineral processing test, customized it The process flow of crushing and screening-grinding-desliming-magnetic separation-concentrate dehydration is established.

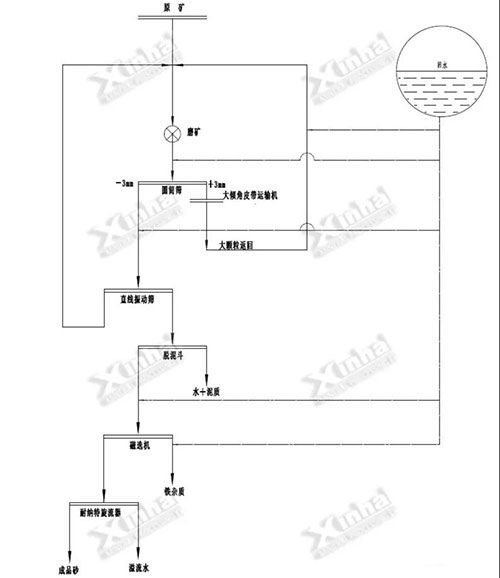

The grinding part is a two-stage grinding process. The crushed quartz mineral material is sent to the overflow rod mill by a belt conveyor. >Grinding, the ground material is sent to the screening machine (cylindrical screen), the material above the screen is sent to the ball mill for re-grinding, and the material below the screen enters the Linear Vibrating Screen for screening, and the same screen The materials are returned to the ball mill for re-grinding, and the materials under the sieve enter the sorting stage.

3. Japanese silica sand ball mill project

The silica sand (quartz sand) ball mill project undertaken by Xinhai Mining is a mining industry chain service project. Its processing The capacity range is 2000t/d. Through mineral processing test research, a reasonable purification process was finally designed for the dressing plant. In the grinding part, Xinhai Mining used rod mill equipment for grinding, and then entered the separation process. stage, and finally obtain high-grade quartz sand.

4. Hebei ultra-pure quartz sand ball mill project

This project is a customer entrusted Xinhai Mining to complete the mining industry chain service project, and its project processing The quantity is 500t/d, and the requirement is that the content of SiO₂ in the product must reach ≥99.95% to obtain ultra-pure quartz sand. In the end, Xinhai relied on its skilled silica sand (quartz sand) technology and equipment, mineral processing and purification reagents, etc. to customize a suitable mineral processing technology plan.

5. Korean silica sand quartz sand ball mill project

This project is the entire Korean quartz sand mining industry undertaken by Xinhai Mining Chain service project, after repeated testing and design plan demonstration with the customer, a set of reasonable mineral processing process was designed for the customer. The grinding part uses a special quartz sand ball mill for grinding, which effectively meets the customer's technical needs.

The above are some quartz sand (silica sand) ball mill project cases completed by Xinhai Mining. The content introduction only focuses on the grinding part. For details of specific project cases, please consult Xinhai Haikou customer service, or contact 15311826613 to learn more!
