The Xj flotation machine, like the xjk flotation machine, is a new device derived from the A-type flotation machine. In the flotation operation, the xj-type flotation machine produced by Xinhai Mining is easy to operate and maintain, and the configuration is It has the advantages of neatness, large air suction volume and low power consumption. Each tank has three functions of air suction, slurry suction and flotation. It forms a self-contained flotation circuit without any auxiliary machine equipment. The horizontal configuration facilitates process changes.

• [Processing capacity]:0.05～7m³ /min

• [Effective volume]:0.13~5.8m³

• [Application environment]: XJ type flotation machine is suitable for the flotation of various medium and small metal and non-metallic minerals, and can complete the roughing, sweeping and selection of various ores. .

Performance characteristics of Xj type flotation machine

1. The Xj type flotation machine has reasonable slurry circulation and can minimize the precipitation of coarse sand. ;

2. The special impeller structure can serve as a guide, has strong stirring ability, and can produce a large amount of microbubbles, effectively increasing the contact opportunities between chemicals, minerals, and air;

3. Xj and xjk models both rely on impeller stirring to generate partial vacuum and suck in air. They have large air suction volume and high production efficiency.

Working principle of Xj type flotation machine

When the Xj flotation machine works, it uses a motor to drive a triangle belt drive to drive the impeller to rotate, which generates centrifugal action to form a negative pressure. On the one hand, it inhales Sufficient air is mixed with the slurry. On the one hand, the slurry is mixed with the medicine, and at the same time, the foam is refined, so that the minerals adhere to the foam and float to the surface of the slurry to form mineralized foam. Then adjust the gate height and control the liquid level so that the useful foam is scraped out by the scraper and the remaining materials are retained in the slurry, thereby achieving the purpose of mineral separation.

Note: When working, you need to pay attention to the appropriate amount of slurry entering the xjk flotation machine. If the amount of slurry is too small, it will easily produce a large centrifugal force when the slurry is thrown out. Increase the aeration amount. If the amount of slurry is too large, If the air is too large, the slurry will block the air cylinder above the impeller, causing difficulty in air suction and reducing the air intake.

Structure characteristics of XJ type flotation machine

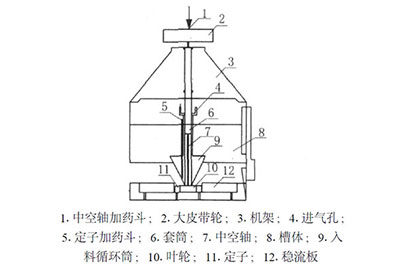

XJ type flotation machine mainly consists of tank body, impeller (completes mixing and aeration), stator, air inlet pipe , suction pipe, bearing, scraper and other parts.
