Click to add WeChatIn recent years, the speed of mining development in countries in Asia, Africa and Latin America has been increasing day by day. These areas are rich in mineral resources, but geological resource exploration work generally lags behind. Problems such as inconvenient transportation, lack of material supplies, and poor working and living facilities have restricted the development of local mining exploration and laboratory testing. Laboratory testing capabilities in and around mining exploration areas cannot meet the needs of geological exploration work.
(Design drawing of Xinhai mobile container)
In response to this problem, Xinhai Mining independently We have developed and manufactured a mobile combined container laboratory experiment and office and living base that integrates laboratory testing, experimentation, office operations, and daily life. The base can be quickly assembled and carried out work. It has all the functions required for work and life, and is reasonably divided to create a fast, healthy and comfortable working and living environment for exploration and laboratory workers. Next, let’s take a closer look:
Xinhai Mining’s mobile combined container laboratory experiment and office living base is an integrated process The designed products include test and experiment areas and office and living base. Services can also be customized and expanded as needed.
Xinhai Mining’s mobile combined container laboratory and experimental area can be equipped with equipment required for testing various elements according to customer requirements. strong>, instruments, tools and reagents and medicines, andequipped with complete ventilation, dust removal, water , electricity, heating and other facilitiesto meet various laboratory and test needs. Room partitions and functional divisions can also be flexibly customized according to customer needs. It is also equipped with a 50kVA and a 10kVA diesel generator set (and is equipped with a 5-ton oil storage tank A), respectively meet the needs of laboratory experiments and daily life electricity.

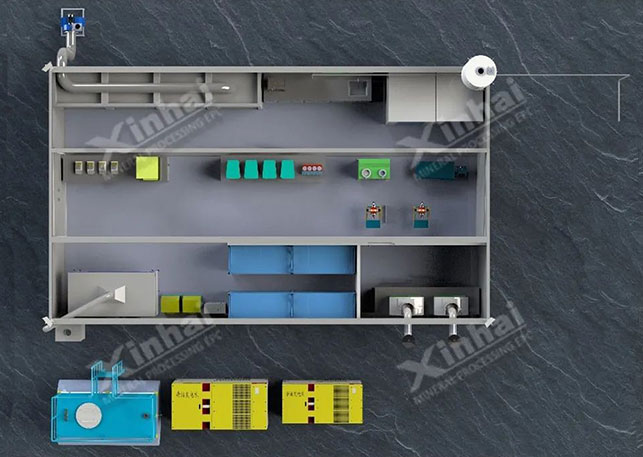

(Schematic diagram of the laboratory and experimental area)
Laboratory equipment process flow For the grinding-gravity-leaching mixing process, we can do tests on the gravity process, leaching process and gravity separation. -Testing of the leaching process; suitable for testing of the gravity separation process of gold, silver, ferrous metals, non-ferrous metals, etc., and testing of the leaching process of gold, silver, copper, nickel, etc., includingcrushing, grinding, gravity separation, Leachingetc. There is also a balance room, atomic fluorescence spectrometry detection room, warehouse and toilet.
The main detection method used by the laboratory is the foam enrichment-flame atomic fluorescence spectrometry method to determine the gold content in the ore. It can provide laboratory analysis for 200 geological samples every day. The service targets various geological mines, including sample crushing, sample preparation, sample storage, acid evaporation, chemical analysis and other functional rooms.

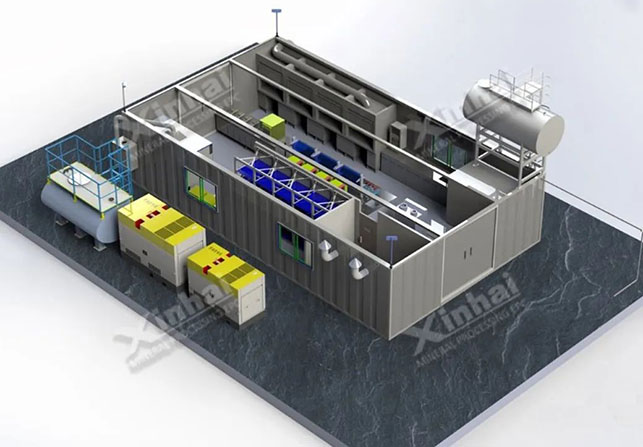

(Schematic diagram of the laboratory and experimental area)
The mobile combined office and living base is a living place set up to support laboratories and laboratories. It is set up not far from the laboratory experiment area to facilitate workers to rest. The base is equipped with necessary places for the staff's daily office work, dining and living, meetings, guest receptions, etc. It contains a kitchen, dining room, bathroom, bedroom, storage room, conference room, etc. Offices, core sorting and storage roomsetc. not only meet workers’ rest needs, but also take into account various work and life needs.

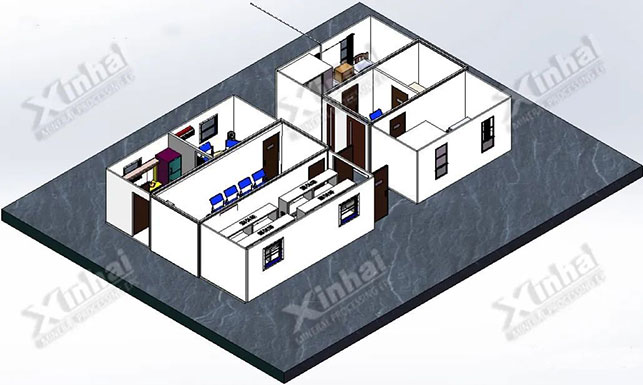

(Schematic diagram of office and living base)
In order to enrich field exploration life, Xinhai Mining's mobile modular container testing laboratory and office and living base can also be customized according to user needs and add a variety of expansion projects, including:
·According to the local geographical environment and climate characteristics, tensile tents, anti-UV umbrellas, and outdoor pavilions can be configured.
·For exercise, a gym (or Outdoor fitness equipment), swimming pools, table tennis rooms, etc.
·For entertainment, chess and card rooms and karaoke sound facilities can be equipped
· In terms of logistics support, it can be equipped with washing machines, dishwashers, clothes drying racks, clothes ironing machines, hair dryers, solar water heaters, solar lights, street light pole massage chairs, rocking chairs, soy milk machines, coffee grinders, etc.
·In terms of vegetable supply, vegetable planting greenhouses are equipped
·Safety protection: barbed wire, barbed wire reinforcement poles, work clothes, and labor protection shoes , rain boots, swing stick, body armor, camera, alarm
·Communication: walkie-talkie, satellite Wifi
·Transportation : Mountain bikes, electric scooters, motorcycles
·Medical: First aid kit
·Equipment and facility repair: Repair tool kit , Electrical bag

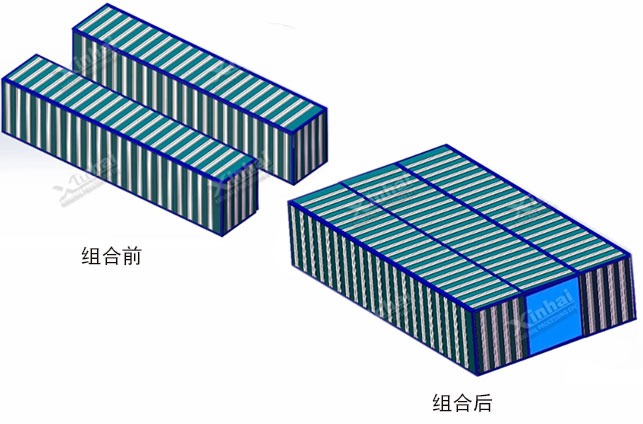

Designed and manufactured according to areas where supplies are scarce When matched with materials and equipment, the room can be expanded from one (or two) to three by extending one to three or two to three, which increases the usable area and improves the comfort of work and life.

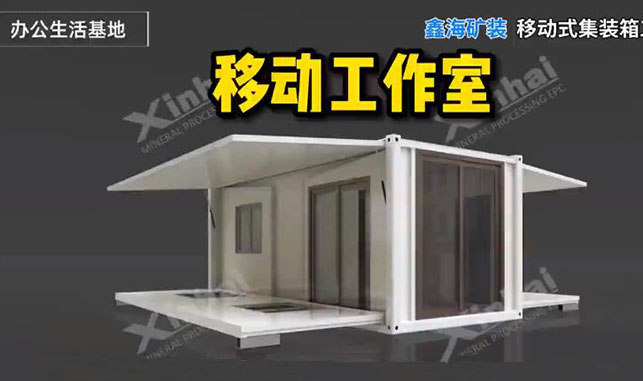

Due to the foldable design, the delivery method can be flexibly selected. It can be shipped in containers in large cabinets or small cabinets, or it can be shipped as a whole. Cabinet shipped.
It can be disassembled, assembled and moved at any time according to changes in the exploration location, and can be used for a long time. Especially suitable for remote mining areas, field exploration, ports, mines, etc. It is not affected by the region and environment, is easy to install and transport, and can be invested in one time, saving basic investment costs, and can be recycled.
The equipment is installed or placed at the designated location. Then, all water pipelines use quick connectors and are connected to the pipelines that have been laid out before leaving the factory. The system is connected, plug and play on site. The equipment circuit uses a fast aviation plug, which can be powered by connecting it to the reserved socket that has been laid before leaving the factory.

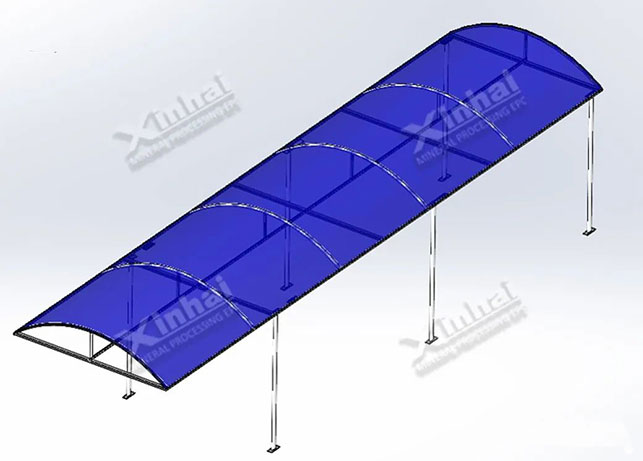

Sunshade and rainproof canopies are used between offices and dormitories, as well as in the corridors between laboratories and laboratories to improve office and living conditions. condition. Sunshade and rainproof canopies can also be made on top of offices, dormitories and laboratories & laboratory buildings upon request.
The operating consoles are assembled from aluminum alloy cabinets with anti-corrosion countertops. They are easy and quick to disassemble and assemble, and various tools can be stored in the cabinets. , reagents, drugs, etc.
Furniture, office desks, chairs, beds, and storage racks are all foldable, considering the convenience of storage and transportation. In the future laboratory relocation process, they can be combined at will and fully utilized.
Equipped with integrated kitchen and integrated bathroom, which is easy to install and move quickly.
As the proposer of "Mining full industry chain services (EPC+M+O)" and practitioners, for more than 20 years, Xinhai Mining Equipment has always been customer-oriented, continuously expanded its service scope, and provided customers with high-quality and reliable services. In the future, Xinhai Mining will adhere to technological innovation and equipment quality, take strong technical strength as its core competitiveness, and strive to tailor reasonable mining industry chain services for major mines around the world!
