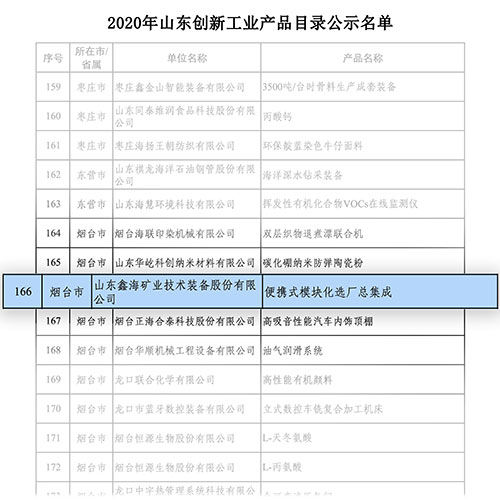

Click to add WeChatThe Shandong Provincial Department of Industry and Information Technology announced the "Selected List of Shandong Innovative Industrial Products Catalog in 2020", and Xinhai Mining Portable Modular Processing Plant General Integration (ie: Mobile Processing Plant) was successfully selected!
Xinhai Mining Portable Modular Processing Plant General Integration (ie: Mobile Processing Plant) is a flexible, efficient, small and medium-sized portable mineral processing system. In view of the characteristics of some mines with high gold grade, coarse embedded particle size, small and scattered mining scale, this system adopts the modular + integrated design concept. It is mainly used for recovering gold minerals in small-scale mines with scattered raw material sources, which is convenient for Adopt a nomadic business model to process ore for retail mining investors.
(Mobile Gravity Separation Plant)
Xinhai Mining Mobile Separation Plant can be divided intoaccording to the different processes used. Mobile gravity separation plant, mobile cyanide plant, mobile flotation plant, mobile gravity separation + cyanide plant; according to the level of equipment matching, it is divided into basic type and flagship type strong>; According to the different raw materials processed, it can be divided into raw ore processing type and tailings processing type.

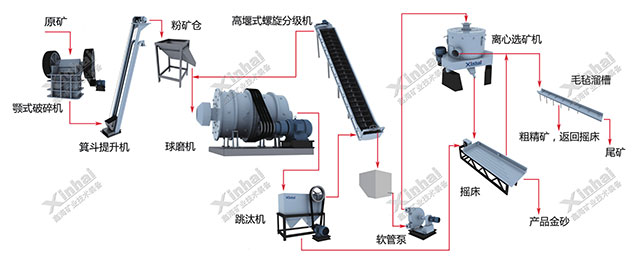

After the ore is mined from the mine, it is manually fed into the jaw crusher for crushing, and the crushed products are transported to the steel mill via a bucket elevator. Pulverizing ore silo, the materials in the pulverized ore silo are evenly fed into the ball mill for grinding. The grinding products are fed into the jig, and the coarse concentrate of the jig is fed into the shaking table for beneficiation to obtain gravity separation gold concentrate 1. The tailings of the jig are returned to the spiral classifier for classification, and the sand returned from the classifier is returned to the ball mill. In closed-circuit grinding, the overflow of the classifier is pumped into the centrifugal concentrator for separation. The concentrate of the centrifugal concentrator is taken out regularly and used for shaker selection to obtain the gravity separation concentrate 2.

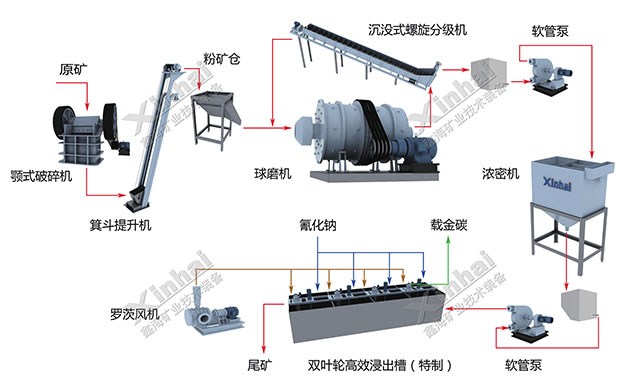

After the ore is mined from the mine, it is manually fed into the jaw crusher for crushing, and the crushed products are transported to the steel pipe via a bucket elevator. Pulverizing ore silo, the materials in the pulverized ore silo are evenly fed into the ball mill for grinding. The grinding products are fed into the spiral classifier for classification, and the sand returned by the classifier is returned to the ball mill to form closed-circuit grinding. The overflow of the classifier is pumped into a high-efficiency thickening box for concentration. The concentrated slurry is pumped into the leaching tank unit for cyanide leaching. Activated carbon and cyanide agent are manually added to the leaching tank, and the air lifter is used to extract the carbon. The saturated gold-loaded carbon is washed with a fixed mesh screen and then sent to desorption electrolysis And smelting.

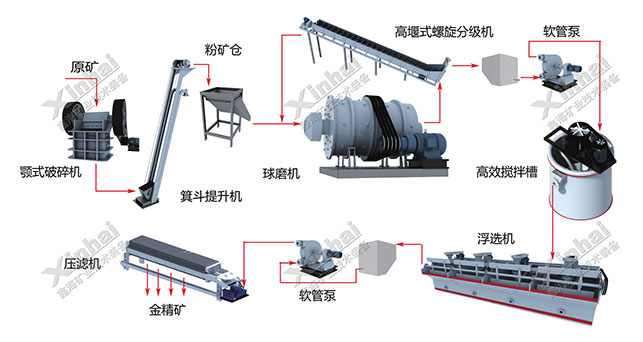

After the ore is mined from the mine, it is manually fed into the jaw crusher for crushing, and the crushed products are transported to the steel mill via a bucket elevator. Pulverizing ore silo, the materials in the pulverized ore silo are evenly fed into the ball mill for grinding. The grinding products are fed into the spiral classifier for classification, and the sand returned by the classifier is returned to the ball mill to form closed-circuit grinding. The overflow of the classifier is pumped into a high-efficiency mixing tank for dosing and mixing, and then enters the flotation system. The flotation system adopts a process of one coarse, two sweeps and two fines. The medium ore is returned in sequence at one time, and the concentrate is driven into the filter press by a hose pump for filtering to obtain the final gold concentrate.
It is worth mentioning that the above three mobile raw ore gravity separation systems are basic type MRGB-5, mobile raw ore cyanidation system basic type MRCB-5, and mobile raw ore flotation system basic type MRFB-5 On the basis of the dressing plant, Xinhai Mining Equipmentcan be modularly customized according to customer needs, replace the crushing module with a tailings slurrying module, and derived tailings Gravity separation system basic type MTGB-5,Tailings cyanidation system basic type MTCB-5 and tailings flotation system basic type MTFB-5.
(Mobile cyanide plant)
According to the mineralogical characteristics of the ore process, Xinhai Mining specially designed the process flow. The excellent equipment performance ensures 24-hour continuous production of the mobile concentrator while ensuring a high recovery rate.

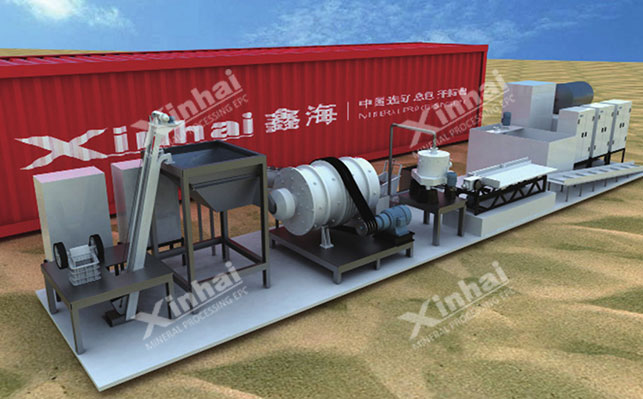

For the basic mobile dressing plant, the entire system is assembled on a set of steel integral frames, eliminating the need for the complex equipment foundation of traditional dressing plants. And simple wheels can be installed to facilitate loading, unloading and transportation, achieving "production upon landing and transfer upon loading"!

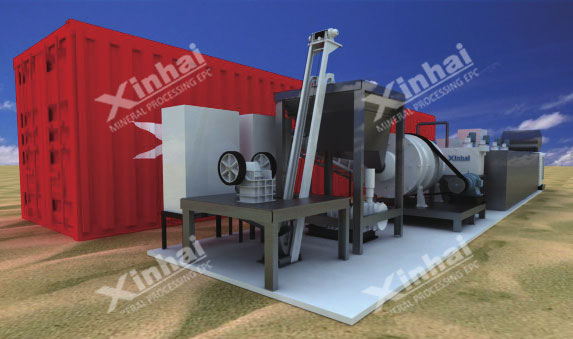

As a mobile dressing plant, its obvious advantage is that each set of dressing plant has been processed, assembled and debugged in the factory, and is completely loaded into containers and transported to the mining area. There is no need for professional installation personnel, on-site workers only need to simply connect water and electricity to start mineral processing.
The entire system removes complexity and simplifies, while retaining the basic functions of the plant selection, eliminating redundancy spare auxiliary equipment, and achieve automatic control as much as possible, simple operation, safe and reliable, and stable indicators.
Xinhai Mininghas established after-sales service centers and spare parts warehouses in many countries and regions. Once the customer encounters a problem in the operation of the plant, we can respond quickly and send technicians to help solve the problem in time to avoid production delays.
Currently, the 5t-scale mobile processing plant developed by Xinhai Mining Equipment Co., Ltd. includes a gravity separation plant, a cyanide plant and a flotation plant< /strong>. According to the characteristics of the customer's ore, Xinhai Mining customizes and combines the process flow and equipment to ensure equipment performance and recovery rate.
Depending on the level of equipment configuration, Xinhai Mining can provide basic and flagship mobile plant separation systems.
◆Basic type: That is, it has high cost performance while meeting the basic operation requirements of the system.
◆Flagship version:Various optional equipment can be added according to customer and factory requirements, such as: full-size sports base, retractable sun visor, one-button start-stop control Taiwan, independent tailings dry discharge module, independent smelting module, etc. A variety of optional equipment can be invested at one time, making it more convenient and practical.
