Why should KYF/XCF flotation machines be used together?

In mineral processing plants, KYF flotation machines and XCF flotation machines are commonly used flotation equipment. According to the structure and Functional characteristics: In a newly built processing plant, the KYF flotation machine requires a height difference of 300-500mm between operations to achieve flotation operations. Therefore, building it in the processing plant increases the cost of infrastructure construction; in addition, Each flotation machine needs to be equipped with a lift pump, which increases the cost of flotation.

For the renovation of the old concentrator, the height of the concentrator and the process height difference have been fixed, which will greatly limit the KYF flotation machine. Applications.

The combined use of xcf flotation machine and kyf flotation machine can take advantage of the specific characteristics of the two flotation machines to avoid the height difference between flotation machine operations, reduce the investment in lift pumps, and reduce Equipment management and maintenance operations, thereby reducing investment costs, improving mineral processing efficiency, and achieving the effect of 1+1>2. Let’s learn more about its advantages below!

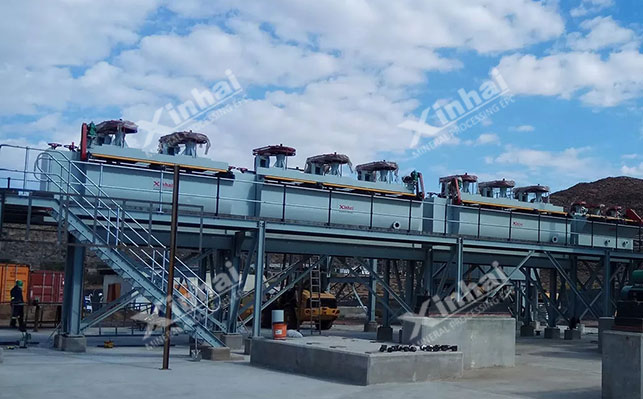

1. The KYF/XCF flotation unit is configured horizontally to reduce infrastructure investment

According to general plant selection requirements, it takes 5 hours to use a KYF flotation machine for roughing, sweeping and selection operations. About a staircase, which requires an increase of 2m in height difference, which will inevitably increase infrastructure investment. The KYF/XCF flotation unit adopts a horizontal configuration (making multiple flotation machines at the same level), eliminating the need for infrastructure construction and investment in height differences.

2. KYF/XCF flotation unit reduces power consumption and equipment losses

KYF flotation machine The power consumption itself is low, but the participation of the foam pump increases the energy consumption of the flotation operation. When the KYF flotation machine is used alone, due to the ladder configuration, the foam pump needs to be configured when returning from the middle mine. The rotation speed is high, the linear speed is large, and the impeller and pump shell wear quickly. The degree of wear is 3-6 times that of the flotation machine. . The horizontal configuration of the KYF/XCF flotation unit not only eliminates the need for a foam pump, but also improves the overall plant operation rate and reduces energy consumption by more than 20%. At the same time, it also avoids various shortcomings caused by the foam pump.

3. Special structural design of KYF/XCF flotation unit to improve mineral processing efficiency

Xinhai Mining Equipment The KYF/XCF flotation units produced adopt U-shaped cross-section design, but the KYF flotation machine does not have upper blades to suck slurry inside, while the XCF flotation machine has upper blades to suck slurry. The KYF/XCF flotation machine installed by Xinhai Mining utilizes The blades on the XCF flotation machine complete the suction feeding and mining operations, which greatly improves the overall mineral processing efficiency. In addition, the KYF / Improved restart capabilities and reduced “rollover” levels.
