What is the processing capacity of 1 cubic flotation machine and how much does it cost?

2021-09-22 Source: Xinhai(1462views)

Welcome to consult Xinhai - customized mineral processing plan

Xinhai can provide you with mineral processing tests, mineral processing process and mineral processing equipment selection, mineral processing plant scheme design and construction drawing design; provide mining mineral processing equipment; provide mineral processing plant construction and equipment installation as well as mine management and operation services.

添加微信:15311826613

15311826613

Click to add WeChat
WeChat ID has been copied, add friends, and get manufacturer quotations!

1 cubic flotation machine is a commonly used equipment in small mineral processing plants. Its processing capacity range is moderate. On the premise of meeting the processing capacity requirements, 1 cubic flotation machine is more energy-saving, occupies a small area, and has low total investment. So let’s take a look at what types of 1 cubic flotation machines there are and how much processing can be done by a 1 cubic flotation machine? How much does one cost?

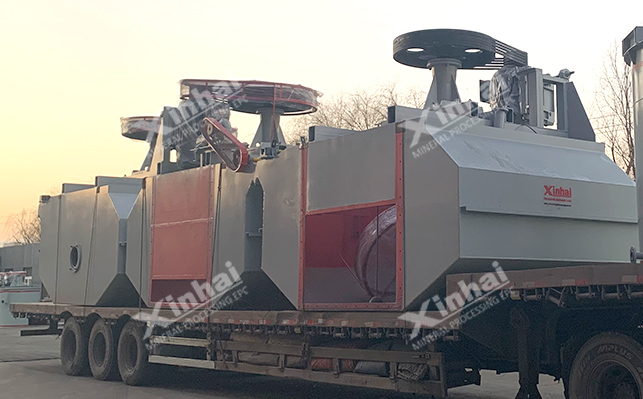

1 cubic small flotation machine Machine selection

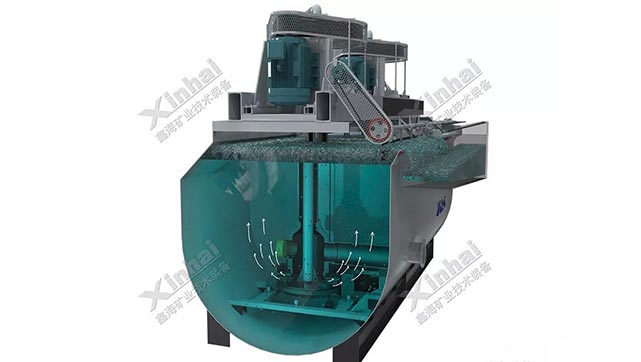

Working principle of flotation machine

Before understanding the type and price of 1 cubic flotation machine, let's first understand the flotation machine How does machine selection work? The flotation machine is composed of a cell body, an impeller, a cover plate, a central cylinder, a feed pipe, a middle ore pipe, a suction pipe, a motor, a bearing, a pulley or a false bottom (some flotation machines have it). During operation, the motor drives the bearings of the flotation machine to rotate, and then drives the impeller cover of the flotation machine to rotate, generating eddy currents and forming negative pressure in the vertical tube and guide tube, causing it to suck in air, and in the impeller and stator areas It is mixed with the slurry sucked in from the guide tube. The mixed fluid is driven by the impeller to form a tangential movement, and then converted into a radial movement by the action of the stator and a local turbulence field is generated. This turbulence field helps the mixing of the air slurry. And refine the air bubbles, and at the same time make the slurry evenly distributed in the flotation tank. The mineralized bubbles rise to the foam layer, and the foam product is scraped out on one or both sides, which completes the flotation.

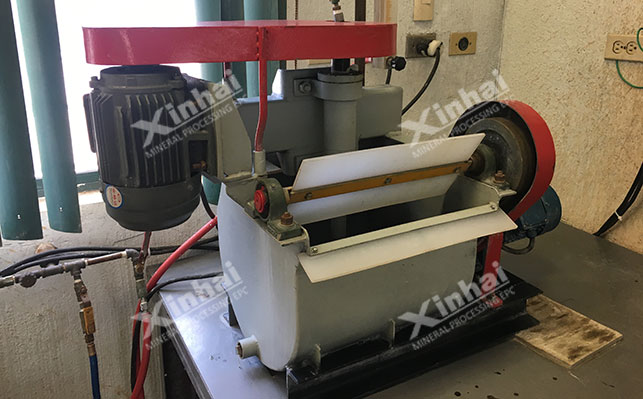

Single tank flotation machine Working principle of concentrator

What types of flotation machines are there

At present, the most commonly used and representative ones in mineral concentratorsFlotation machine equipment Mainly include XCF inflatable agitated flotation machine, KYF external inflatable agitated flotation machine, BF mechanical agitated flotation machine, SF mechanical agitated flotation machine Flotation machine, JJF/JJF II mechanical stirring flotation machine, CLF coarse particle flotation machine, etc. Among them, the upper limit volume of a single tank of xcf and kyf flotation machines can reach 160m3, which can meet the requirements of various large or extra-large mineral processing plants; the clf coarse-grained flotation machine can meet the requirements of coarse-grained minerals in mineral processing plants. Recycling; and sf and jjf flotation machines have good separation effects in processing fine materials. Others include XJB flotation machine, xjq flotation machine, etc.

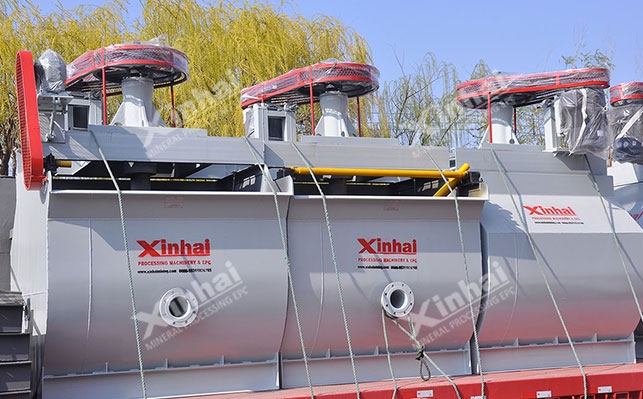

1 cubic flotation Machine type

What is the processing capacity of 1 cubic flotation machine?

Generally, the processing capacity range of 1 cubic flotation machine is between 0.2~1.7 m3/min. For example, the processing capacity range of xcf and kyf type 1 cubic flotation machine is 0.2~1 (m3/min), the processing capacity range of XJB1 cubic flotation machine is 1.5-1.7m3/min. For specific flotation machine processing capabilities, please refer to more flotation machine technical parameter tables: as follows (only part of the parameter table)

How much does a cubic flotation machine cost?

1 Cubic flotation machine is generally a very small equipment, suitable for small mineral processing plants, so the price is relatively cheap, but the production standards of each manufacturer are different, and the materials and equipment types used are different. Therefore, the pricing standards of each flotation machine manufacturer are also different. At present, the price of a 1m3 flotation machine for a single tank is between 15,000 and 22,000. The specific price of a 1 cubic flotation machine needs to be determined by contacting each manufacturer.

1 cubic flotation Machine price

Xinhai Mining Equipment can produce various types of flotation machines with complete models. The flotation process can be designed according to the actual conditions of the mineral processing plant. And customized supporting mineral processing equipment including flotation equipment. If you want to know more about flotation machines or flotation machine quotations, please contact Xinhai Mining Customer Service or call the hotline: 15311826613!
