SF8 cubic flotation machine is one of the models of SF flotation machine. This flotation machine is a type of mechanical agitation flotation machine. It can be used for rough separation of various metal and non-metallic minerals in mineral processing plants. and sweeping operations. So how much does an SF8 cubic flotation machine cost? Below we will introduce the parameters, specifications, characteristics, structure, principles and prices of SF8 flotation machine from multiple angles to help users understand this Flotation machine equipment.

SF cubic flotation machine parameter specifications

The effective volume of the SF8 cubic flotation machine is 8 cubic meters, and its model is SF- 8. The processing capacity range is 4 to 8 cubic meters per minute. The impeller diameter of the flotation machine is 760mm, the impeller rotation speed is 191 rpm, the stirring motor power is 30Kw, and the scraper motor power is 2.2Kw. The weight of a single tank is 4129kg.

Characteristics of SF8 cubic flotation machine

We introduced in the above content that this flotation machine is a mechanical stirring device, capable of self-priming and self-priming, and each tank has It has the function of air suction and slurry suction. In the flotation operation, the SF flotation machine can form a self-contained flotation circuit without any auxiliary equipment (such as external air supply of a blower and transport of slurry by a lift pump).

The impeller blades of this flotation machine adopt a backward-inclined double-sided design, which can effectively realize the two-way circulation of the slurry in the tank, and has large air suction volume and high speed. Fast and long impeller service life.

In addition, due to its structural design, the SF flotation machine can be used as a suction tank and can be combined with the jjf flotation machine to form a combined unit, so that the flotation machine operation room can be configured horizontally without the need for height differences to build other units. investment.

Structure of SF8 cubic flotation machine

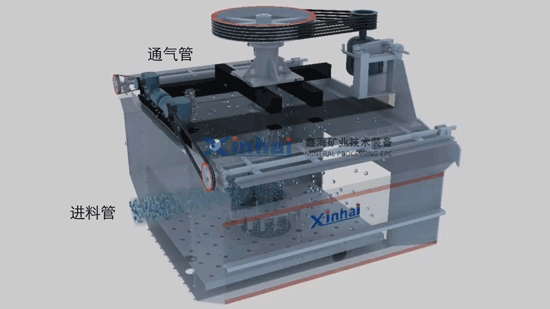

SF8 cubic flotation machine consists of flotation tank, ore feeding pipe, impeller, cover plate, medium ore pipe, suction pipe and other parts .

Principle of SF8 cubic flotation machine

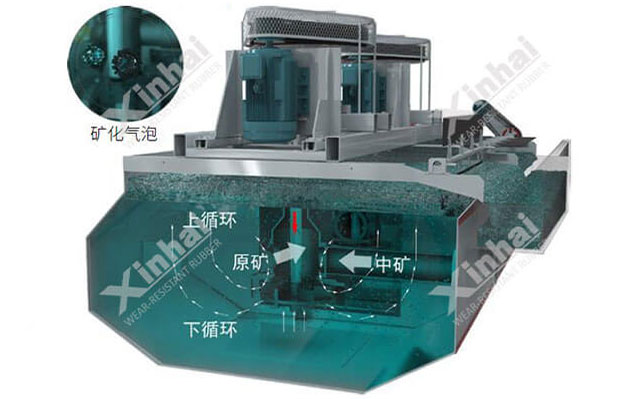

The principle of SF8 cubic flotation machine is to use a motor to drive the impeller of the flotation machine to rotate, so that the impeller The slurry in the upper and lower chambers generates corresponding centrifugal force in their respective ranges, throwing the slurry around to form a negative pressure zone. The air enters the impeller cavity through the suction pipe, is fully mixed with the slurry, and then forms a large number of mineralized bubbles, which rise to the foam layer and are scraped out by the scraper.

The price of SF8 cubic flotation machine

What is the price of SF8 cubic flotation machine? The price of general single tank flotation machine Cheaper, but each processing plant selects different types of minerals, has different processing volumes, and has different selections of related accessories for the flotation machine, so its prices are also different. If you want to know the specific price of SF8 cubic flotation machine, you need to first determine the type of ore, daily processing capacity, accessories requirements, etc., and then consult the manufacturer to give an actual quotation.
