Click to add WeChatNowadays, easy-to-select gold ore resources are decreasing day by day, and difficult-to-select gold ores have become the object of research and development. The following takes a certain difficult-to-benefit gold ore as an example to introduce its gold ore beneficiation process plan and the required gold ore beneficiation plant equipment!
The gold ore exists in the form of natural gold, mainly wrapped gold, followed by intergranular gold and fissure gold, and other metal ores in the form of pyrite. Ore, colloidal pyrite, marcasite and arsenopyrite are the main ones, followed by pyrrhotite, colloidal marcasite, limonite, hematite, chalcopyrite, sphalerite, galena, Rutile, etc., as well as a small or trace amount of covellite, chertite, magnetite, ilmenite, smithsonite, cerusite, sulfide-antimonite, etc. The gangue minerals are mainly quartz, with a small amount of feldspar, Calcite, dolomite, chlorite, sericite, etc. Trace minerals include kaolin, jarosite, graphite, apatite, zircon, etc.
(picture from the Internet)
Based on the analysis of the properties of the gold ore, the designed process flow is crushing-rough selection-sweeping-regrinding-concentration.
This stage of crushing adopts a three-stage and one closed-circuit process. The particle size of the mineral after crushing must reach the requirement of -3mm, and a gyratory crusher is used for coarse crushing. Jaw crusher is used for medium crushing, single-cylinder cone crusher is used for fine crushing, and DZS linear vibrating screen is used for screening, which has high screening efficiency for fine screening of medium and fine particle sizes.
The grinding adopts a two-stage closed-circuit grinding process, so that the gold ore particle size reaches -0.074mm accounting for 85%. One stage of the grinding operation uses a grid-type ball mill, and the second stage of grinding uses an overflow ball mill. And a grinding classification system is formed in the spiral classifier to ensure that the grinding fineness meets the requirements.
The gold ore roughing stage uses a rough separation process. After grinding, the qualified products are sent to the stirring tank and added with mineral processing reagents, stirred thoroughly, and then pumped into the SF flotation machine for rough separation. The flotation reagents mainly use Na2CO 3 is used as the pH adjuster to make pH=8, T101 is used as the dispersant, CuSO4 is used as the activator, D3 is the collector, and No. 2 oil is Foaming agent.
The gold ore sweeping stage adopts a sweeping process, which is to sweep the tailings after rough selection, and add Quantify T101, CuSO4, D3 and No. 2 oil. The JJF flotation machine completes the sweeping operation, and the final concentrate product obtained by sweeping is sent to the beneficiation plant. stage.
The regrinding process is mainly to make the gold mineral more Fully dissociate the monomers to obtain higher-grade final gold concentrate. The coarse concentrate obtained after rough separation is regrinded, and the process adopts a closed-circuit grinding process. Use an overflow ball mill to grind the coarse concentrate to -0.043mm accounting for 89%. In addition, a certain amount of T101 dispersant needs to be fed into the ball mill to ensure the effective separation of gold products and yellow iron impurities. The final product will Sent to selection stage.
This stage adopts a two-stage selection process. After regrinding and sweeping, the qualified minerals are sent into the mixing tank and appropriate chemicals are added. After that, it is pumped into the KYF flotation machine for a primary selection operation, and then sucked in by the XCF flotation machine to complete the secondary selection operation and obtain qualified gold concentrate.
In view of the equipment required for this gold ore concentrator, It mainly includes crushing and screening equipment, grinding and classification equipment, flotation equipment and some auxiliary equipment.
Crushing and screening equipment: It is a gyratory crusher, jaw crusher, single-cylinder cone crusher and DZS linear vibrating screen, among which gyratory crushing is used for coarse crushing, and the ore particle size range is 75~320mm; jaw crusher is used for medium crushing, and the ore particle size range is 22~75mm; cone crusher is used for fine crushing, ore particle size is ≤3mm; linear vibrating screen is configured according to the particle size required for each crushing stage, and the screen size is configured to ensure the screening particle size Standards compliant.

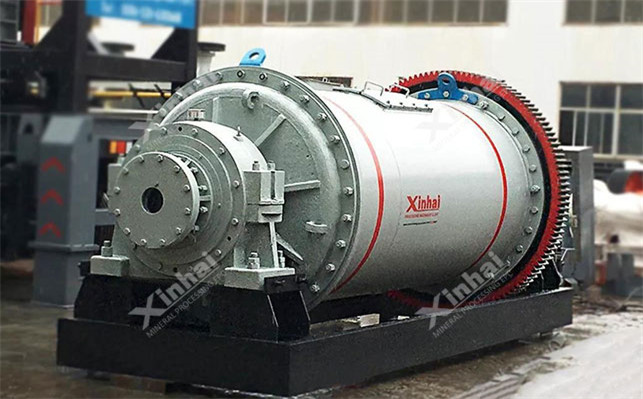

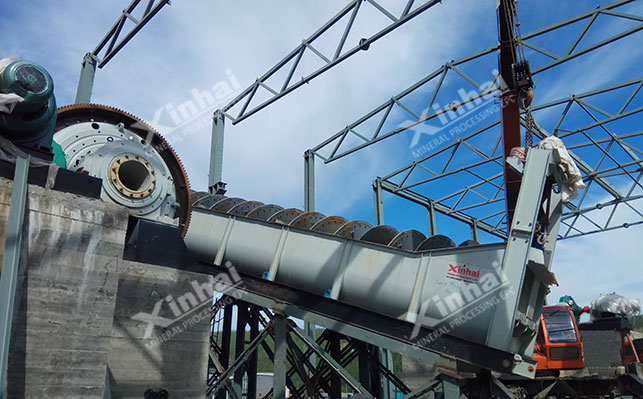

Grinding and classification equipment: It is a grid ball mill, an overflow ball mill and a spiral classifier, among which Grid-type ball millBecause the ore discharge place is equipped with a grid plate, it can be forced to discharge the ore, and the output particle size is relatively coarse, so it is placed in the coarse grinding stage to complete the grinding operation; the overflow-type ball mill's ore discharge relies on continuous feeding It is squeezed and pushed, and gradually sent to the ore discharge place. This type of ball mill has a long grinding time and a fine grinding particle size. Therefore, it is placed in the regrinding stage to complete the fine grinding operation. At this stage, a spiral classifier will be set up to classify the grinding products. After classification, qualified materials are sent to the selection section, while unqualified materials are returned to the regrinding stage to continue grinding.

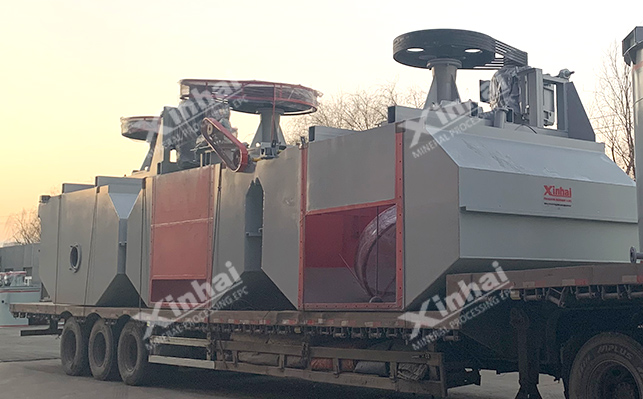

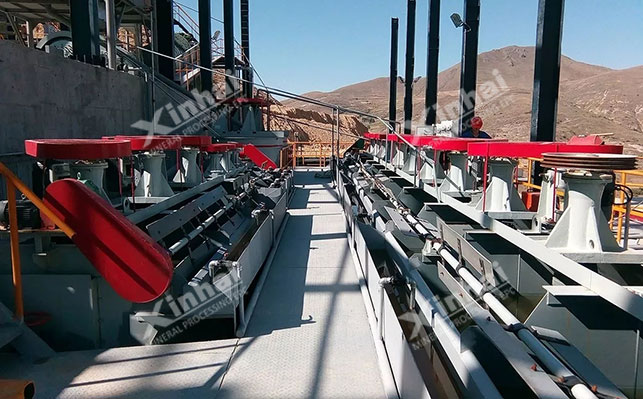

Flotation equipment:The equipment used for flotation is mainlySF type, JJF type, KYF type and XCF typeFour models, respectively, according to the characteristics of their equipment, perform rough selection, sweep selection and fine selection to complete the operation. During this period, there will be chemical mixing tanks at each stage to do auxiliary work. After grinding, the slurry and chemicals are fully mixed to facilitate flotation. In addition, in the flotation machine configuration, a slurry pump will be installed to transport the slurry to ensure that each flotation link can be fed and output normally.
The above introduction to the ore properties, mineral processing process plan and required equipment of the refractory gold ore, through experimental analysis, customized the gold ore beneficiation process, finally made the refractory gold ore obtained Contains gold 41.76g/t, Contains silver 38.59g/t, the recovery rates of gold and silver are 89.21% and 78.10 respectively %, achieving efficient recovery of difficult-to-separate gold.
Xinhai Mining has very rich experience in gold ore beneficiation. It can not only conduct beneficiation tests, in addition to designing gold mine beneficiation process plans and gold mine beneficiation plant construction plans, we can also provide complete sets of gold mine beneficiation plant equipment , if you have any needs, welcome to consult.
